Kohler Faucet Cartridge Stuck [Why+ How To Fix]

 Various reasons can cause a Kohler faucet cartridge stuck, including:

• Kohler faucet cartridge clogged due to sediment deposits
• Warping Or damaged Kohler faucet
• Incorrect installation of Kohler cartridge

Removing a stuck Kohler cartridge from a faucet is a simple matter only if you have the right removing tools. A large socket wrench can also work well in this situation. If it seems really hard to turn the cartridge, you can loosen it by spraying WD-40 or injecting vinegar.

If you’re still in trouble, this post will be a valuable resource for you to troubleshoot a stuck Kohler faucet cartridge. Here you go!!!

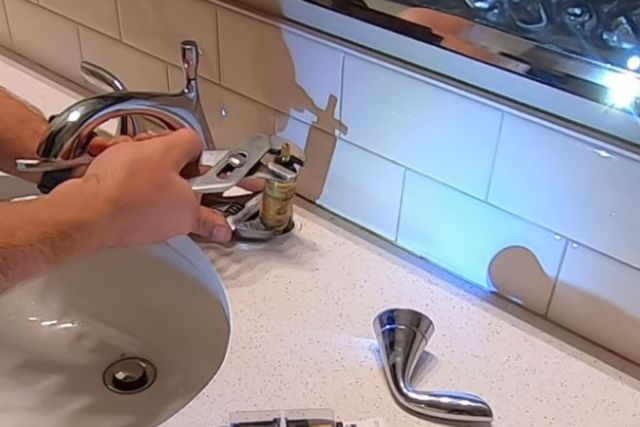

Kohler Faucet Cartridge Stuck [Easy Solutions]

One common problem that Kohler faucet owners encounter is a stuck cartridge. The cartridge is a crucial component within the faucet that controls the flow of water. But If it gets stuck, it can cause a significant inconvenience.

Don’t panic, here we have a few quick tips for you to loosen the cartridge from your shower faucet:

i). Use A Hairdryer:

This is one of the most effective methods you can try out. Basically, metals tend to expand when hot, and that’s the point a hair dryer or heat gun comes into play. Simply put a hair dryer on the stuck cartridge for about 8-10 minutes on high heat. With more heat, the faucet metal will expand and loosen the cartridge.

ii). Using Socket Wrench:

You can use a socket wrench to remove the stubborn cartridge. Try to slide the wrench over the stem and turn it counterclockwise to remove the cartridge retaining nut.

When done, gently pull out the cartridge without damaging the other faucet parts.

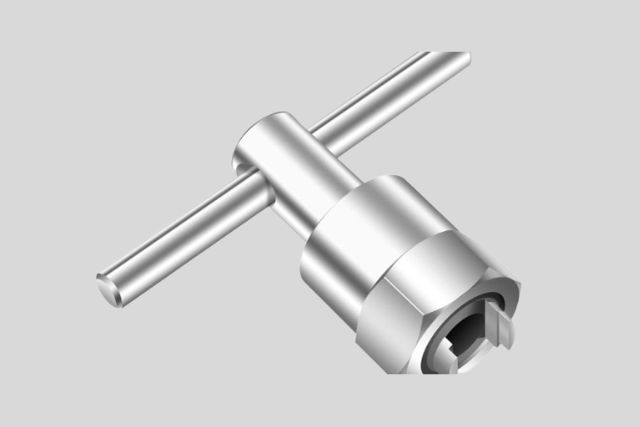

iii). Using A Cartridge Puller:

As one effective tool, you can use a cartridge puller to remove the stuck cartridge from the valve stem.

For instance, place the puller over the stem and grip the handle of the puller. Now, twist the puller back and forth to pull the cartridge straight out.

iv). Loosen With Vinegar Solution:

If the cartridge puller doesn’t work, you can apply the vinegar solution as one of the more effective ways to soften the cartridge. Simply inject the vinegar into the valve housing using a syringe and let it sit overnight to dissolve the scale build-up. In the morning, hope you will be able to extract the cartridge.

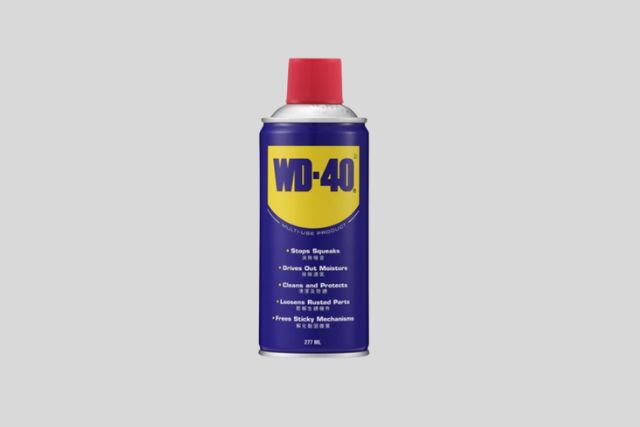

v). Use Lubricant Like WD-40:

If you’re still struggling with the Rust and scale build-up in the valve stem, try to dissolve it with WD-40 or a similar spray.

Spray the WD-40 on the valve connection and  Give it 10 minutes to work. Then, try to unscrew the cartridge.

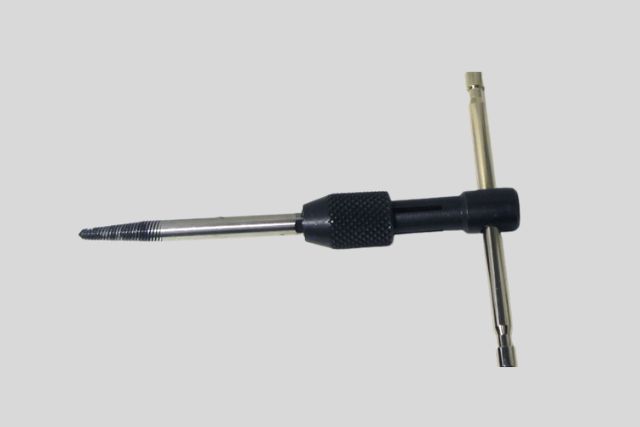

vi). Use A Screw Extractor:

In case you’re suspecting of broken screws on the cartridge assembly leading to being stuck, you can use a screw extractor to remove the broken part and cartridge.

For instance, drill up to ½ tap into the center of the cartridge with the screw extractor. When done, use pliers to pull out the cartridge.

Why Does A Kohler Faucet Cartridge Stuck [Why + How To Fix]

Let’s check out why the bathroom faucet stuck:

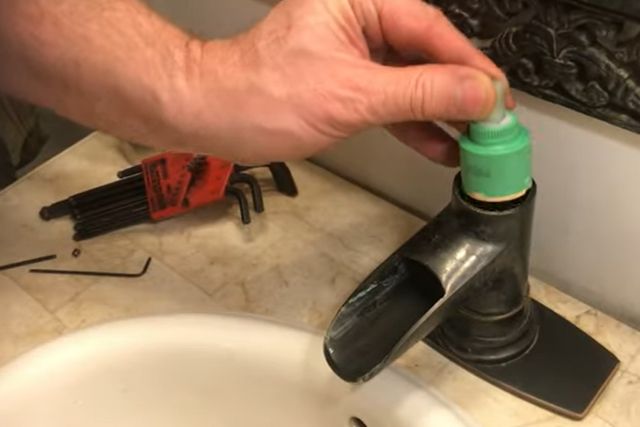

1. Kohler Faucet Cartridge Clogged

Kohler faucet cartridges primarily stuck due to the accumulation of minerals and sediment within the cartridge. Even the issue is quite common in areas with hard water, which contains high levels of minerals such as calcium and magnesium.

When water flows through the cartridge, these minerals can gradually deposit and build up on the internal components, including the moving parts of the cartridge.

Over time, this buildup restricts the smooth movement of the cartridge, making it difficult to turn or remove.

Quick Fixes:

In order to fix a Kohler faucet cartridge that has become stuck due to clogged, follow these steps:

Step 1: Turn Off The Water Supply:

First up, you’ll need to turn off the water supply to avoid any accidental leaks or flooding.

Step 2: Disassemble The Faucet:

Remove any decorative caps or handles that cover the cartridge. Simply unscrew or pry off the handle with a flathead screwdriver. Once removed, you will have access to the cartridge.

Step 3: Soak The Cartridge:

Now at this stage, you will need to prepare a vinegar solution to dissolve the minerals. Pour vinegar with equal parts of water into a container large enough and inject the solution into the cartridge with a syringe.

Let it soak for several hours or overnight. The vinegar helps dissolve the mineral buildup and break it apart.

Step 4: Pull Out The Cartridge:

After soaking, it will be quite easier for you to pull out the cartridge from the assembly.

Note: Remember, if you’re unsure about any step or encounter difficulties, it’s recommended to consult the manufacturer’s instructions or seek assistance from a professional plumber to avoid any further damage to your faucet.

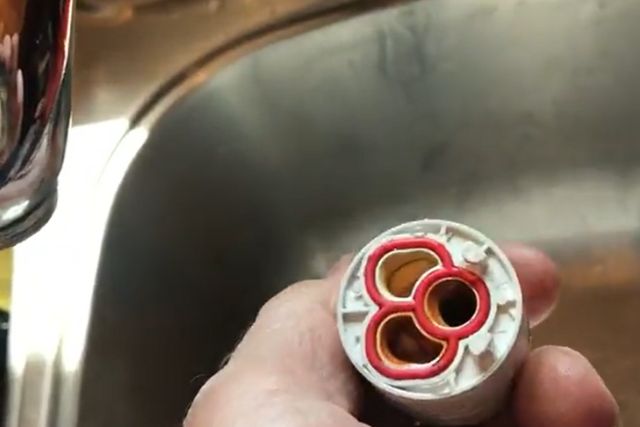

2. Warping Or Damage Kohler Faucet

When it comes to Kohler faucet cartridges, it’s not uncommon for them to become stuck due to warping or damage. This can be a frustrating issue for homeowners and plumbers alike, as it can prevent the faucet from functioning properly.

Let’s check out some causes of a Kohler faucet cartridge being stuck due to warping or damage:

• When you’re applying too much force to the faucet handle can strain or warp the cartridge, causing it to become stuck.
• Over time, the moving parts of the cartridge can wear down or become damaged, leading to sticking or seizing.
• In rare cases, a faulty or poorly manufactured cartridge may have inherent warping or damage that causes it to become stuck.

Quick Fixes:

In the case of a damaged or warped cartridge, the following solutions may be helpful:

i) Resolve Excessive Force:

• If the cartridge is strained or warped due to excessive force, it is best to replace it with a new one.
• Reach out to Kohler customer service or consult a professional plumber to obtain the correct replacement cartridge.
• Follow the instructions provided by the manufacturer for cartridge removal and installation to ensure proper functionality and avoid further damage.

ii) Remove Manufacturing Defects:

Contact Kohler customer service: If the cartridge is found to have a manufacturing defect, reach out to Kohler customer service to discuss the issue and explore warranty coverage or replacement options. They can provide guidance specific to your situation.

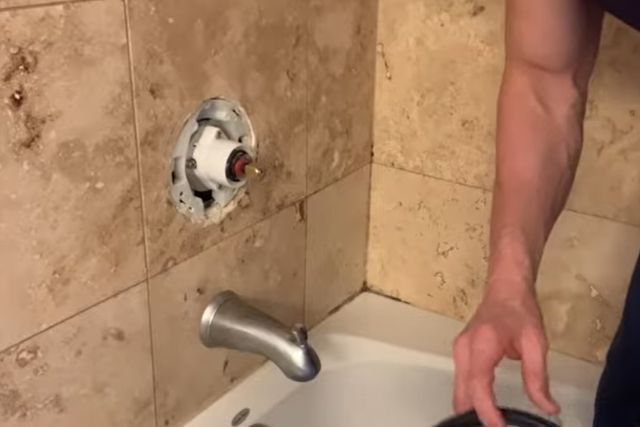

3. Kohler Cartridge Incorrect Installation

If the cartridge is not installed correctly or if it was tightened too much, it can lead to sticking issues.

This can happen due to various factors, such as human error or lack of proper knowledge during installation.

Quick Fixes:

Follow these steps to fix a stuck Kohler faucet cartridge caused by improper installation:

Step 1:  First off, turn off the water supply to prevent any leaks.

Step 2: Now, carefully inspect the cartridge to determine if it has been overtightened. An overtightened cartridge can cause it to become stuck.

Step 3: If the cartridge is overtightened, use pliers or a cartridge removal tool to carefully loosen it. But be cautious not to apply excessive force, as it may damage the cartridge or the faucet.

Apply steady and controlled pressure to loosen the cartridge gradually.

Step 4:  If the cartridge remains stuck even after it has been properly loosened, you can apply a lubricant. Such as silicone grease or plumber’s grease, to the cartridge. This can help reduce friction and make it easier to remove. Apply a small amount of lubricant to the cartridge and gently try to twist and remove it.

Step 5:  If you are unable to loosen the cartridge or if you are unsure about any step, it is advisable to seek assistance from a professional plumber.

They have the expertise and tools to handle the situation safely and effectively. A plumber may also be able to identify and address any other underlying issues causing the cartridge to stick.

Note: Remember, when dealing with a stuck cartridge, it’s important to be patient and avoid using excessive force, as it can cause further damage. If you are uncertain or uncomfortable performing the steps mentioned above, it’s best to consult a professional plumber to ensure the problem is resolved correctly.

How To Replace Kohler Faucet Cartridge

A Kohler faucet cartridge is a replaceable component that controls water flow and temperature in Kohler faucets. It uses ceramic discs to regulate water passages and ensure proper operation.

When issues like leaks or inconsistent temperature arise, replacing the cartridge is a common solution.

You can replace a Kohler faucet cartridge by following these steps:

Step 1: Gather The Necessary Tools:

You may need an adjustable wrench, pliers, a screwdriver, and a replacement cartridge specifically designed for your Kohler faucet model. Make sure to turn off the water supply to the faucet before starting the process.

Step 2: Remove The Handle:

Locate the screw on the handle and use a screwdriver or Allen wrench to remove it. Once the screw is removed, gently pull off the handle.

Step 3: Access The Cartridge:

Depending on the faucet model, you may need to remove additional components, such as a decorative cap or trim, to access the cartridge. Check the user manual or Kohler’s website for specific instructions related to your faucet model.

Step 4: Remove The Old Cartridge:

Once you have access to the cartridge, you may need to use pliers or an adjustable wrench to loosen and remove the retaining nut. Carefully pull out the old Kohler cartridge, keeping in mind that it may be stuck and require some force.

Step 5: Install The New Cartridge:

Take the replacement cartridge and align it properly in the cartridge housing. Ensure it fits securely and snugly. If there are any O-rings or seals that come with the new cartridge, make sure to install them correctly.

Step 6: Reassemble The Faucet:

Reverse the steps you followed to disassemble the faucet. Replace any decorative caps, trims, or handles, and tighten the retaining nut if necessary. Make sure everything is properly aligned and tightened.

Step 7: Turn On The Water Supply:

Once you have reassembled the faucet, turn on the water supply slowly to check for any leaks. If you notice any leaks, tighten the connections or check if the cartridge is properly seated.

Note: These are general guidelines, and the specific steps may vary depending on your Kohler faucet model. Always consult the user manual or Kohler’s website for detailed instructions specific to your faucet

FAQs:

Conclusion:

When one of your Kohler faucet cartridges stuck, it is a very annoying experience for you to deal with. However, with the right tools and steps, it can be resolved promptly and efficiently.

It’s important to take caution and avoid using excessive force as this can cause damage to the faucet and lead to more complicated repairs.

If you’re uncomfortable attempting to fix the issue yourself, it’s always best to call a professional plumber to ensure the job is done correctly and safely. With the right approach, your Kohler faucet will be back to working like new in no time.

Still, if you encounter any further issues with your shower valve, our comprehensive guide will be enough to diminish any of the Kohler shower valve problems.

Note: Read our ultimate guide on Why Kohler shower valve no hot water and how to fix it.
